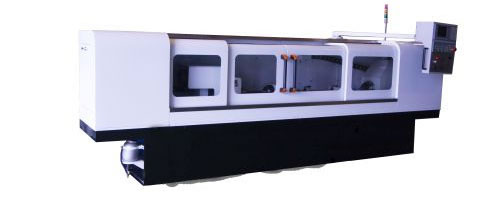

Single Shaft Gun Drilling Machine

Single Shaft Gun Drilling Machine (NCSD)

Description:

The single axis gun drilling machine is widely used in drilling and reaming, tapping etc. It has a wide application in car industry, locomotives, shipbuilding, aviation and engineering mechanics. NCSD-1000 single axis gun drilling machine with 1000mm drilling depth is an automatic drilling machine which absorbs modern industry advanced technology.

Advantages:

1. The single axis gun drilling machine adopts servo control system.
2. Mechanical transmission adopts internal circulation ball screw with high precision.
3. The machine is equipped with deep hole cutting cooling system which can supply different flow rate and pressure according to size of drill.
4. The machine reaches an advanced level among other drilling machine in performance, precision, scale of processing, operation and work efficiency.
5. The single axis gun drilling machine adopts stepless speeding regulating, which ensure the large sale of speeding regulating and reasonable power configuration.

Parameter:

Model	NCSD-1000
Index	unit
Diameter scope of gun drill (mm)	mm	3~22(single shaft)
Drill hole depth	mm	1000
Distance of drill pipe box (Z axis)	mm	1050
Maximum speeding rate of main shaft	r /min	6000
Rotation speed of workpiece	r /min	200
Speed of main shaft	mm/min	0~1000
Motor power of Z shaft	kW	1.3
Motor power of main shaft	kW	5.5
Motor power of workpiece rotation	kW	0.75
Diameter of the biggest workpiece	mm	Φ72
Length scale of processing parts	mm	10-1100
Pressure scale of chipping cooling liquid	MPa	3~10.5
Flow scale of chipping cooling liquid	L/min	0~32
Size of drilling machine	mm	4600×1800
Maximum height of single shaft deep hole drilling machine	mm	1800
Total power of drilling machine	kW	25
Total weight of the machine	ton	3
CNC device		new digital control system

Standard fittings:

TransformerChip cleaner

Oil temperature control machine

Main shaft

Available accessories:

Guide sleeve
Tool sharpening machineChipping oil
DeoilerRubber sheathDrill
