Description:

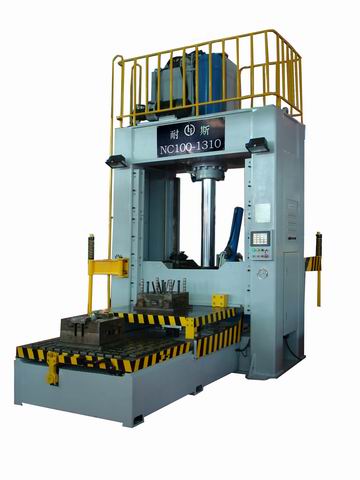

NC100-1310 vertical mold spotting press is mainly applied in repair or verification of plastic die, hardware molding die. Its maximum spotting force is 100T and working bench is 1300×1000mm. The mould can be turned from 0-180. Computer control and man/machine interface operation make it easy, quick, safe, and reliable to use NC100-1310 vertical mold spotting press. Our company is a professional and reliable mold spotting press machine supplier in China because of expertise and technology.
Types of die spotting machine:
100T Disk100T Pressure Plate
Application:
NC100-1310 vertical mold spotting press is mainly applied in repairing and assembling of various plastic mould, or metal die-casting die.
Features:
1. Easy and fast operation
NC100-1310 vertical mold spotting press uses PLC control, and human-machine interface operation, which makes work easy, convenient and fast.
2. Flatness and small deformation
Upper and lower working benches and guide rails of pressure-plate die spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with sound flatness, high precision and small deformation.
3. Safe and energy-saving
NC100-1310 vertical mold spotting press supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving.
4. Perfect safety facilities
There are complete safety facilities to ensure man’s security, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
5. High precision
The NC100-1310 vertical mold spotting press uses unique vibration absorption system and the hydraulic impact is minimized, which ensures equipment precision.
6. The machine has low-voltage protection function and has fast pressing function, which enables good red lead pressing effect.
7. NC100-1310 vertical mold spotting press is equipped with security device.
Anti-falling facilities
Locking facilities
Safety supporting facilities
Rating protection
Components:
Front view
Side view
Parameter:
Model
|
NC100-1310 vertical vertical mold spotting press
|
Max spotting force(T)
|
100
|
Max lifting force(T)
|
40
|
Die opening space(mm)
|
1300
|
Size of working bench(mm)
|
1300×1000
|
Bearing capacity of upper working bench(T)
|
3
|
Bearing capacity of lower working bench(T)
|
8
|
Suction force of upper magnetic disk(T)
|
55
|
Suction force of lower magnetic disk(T)
|
40
|
Fast up/down speed(mm/s)
|
70/70
|
Slow up/down speed(mm/s)
|
<25
|
Eject capacity(T)
|
3
|
Eject stroke(mm)
|
100
|
Out stroke of lower working bench(mm)
|
2200
|
Motor power(KW)
|
7.5
|
Total height of machine(H)(mm)
|
4250
|
Land area of machine(mm)
|
4300×3600
|
Weight of machine(T)
|
12
|
