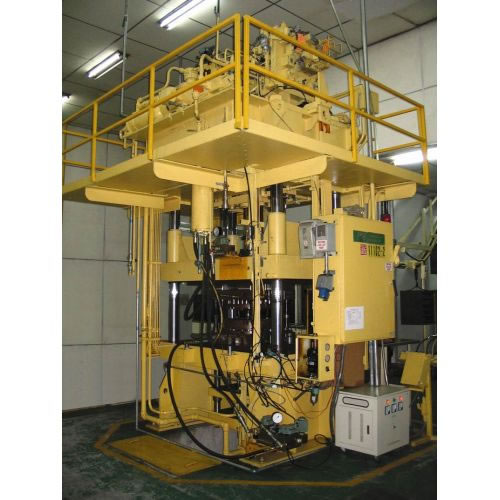

Single-Action Hydraulic Sheet Metal Drawing Press (NCB Series Deep Drawing Press)

Description:

NCB series single-action hydraulic sheet metal drawing press or thin-strip tensile testing machine is mainly used to process thin metal parts, like stretching bending, flanging, and pressing and punching, also is used in hot pressing of nonmetals. NCB series single-action deep drawing press is classified into various types, NCB-200, NCB-315, NCB-500, NCB-630, NCB-800, NCB-1000.

Features of the Hydraulic Sheet Metal Drawing Press:

1. Upper and lower working benches are made from nodular cast iron, with small deformation.
2. Hydraulic system supports vibration-absorption facility to reduce hydraulic impact and ensure high precision of facility.
3. Strong rigidity and small deformation
Single-action deep drawing press has advantages of strong rigidity and small deformation as it adopts welding frame structure after going through aging treatment.
4. It is easy to operate the machine as it uses PLC control and human-machine interface.
5. It is convenient to operate single-action deep drawing press as it is equipped with microining device and device for location control.

Typical Machines:

NCB-200NCB-315NCB-500NCB-630NCB-800NCB-1000

NCB-200 Hydraulic Sheet Metal Drawing Press

Model NCB-200
Total pressure(KN) 2000
Return force(KN) 600
Hydraulic cushion pressure(KN) 630
Blanking and buffering power(KN) 1000
Adjustable distance of buffering opening(mm) 200
Stroke of sliding block(mm) 710
Largest stroke of hydraulic cushion(mm) 350
Largest working pressure of liquid(Mpa) 20
Opening space(mm) 1200
Velocity of
Sliding block
Idle descent(mm/s) 200
Operation(mm/s) 10
Return(mm/s) 200
Velocity of
Hydraulic cushion
Ascend(mm/s) 100
Return(mm/s) Random
Size of working
bench
Left to right(mm) 1500
Front to aft(mm) 1200
Effective size of
hydraulic cushion
Left to right(mm) 800
Front to aft(mm) 500
Size of knockout hole(mm) Ф36
External size Height above ground(mm) <5300
Height below ground(mm) 2000
Floor
area
Left to right(mm) 3300
Front to aft(mm) 2000
Precision of repeated positioning(mm) -
Stroke of lower working bench(mm) -
Bearing capacity of moving-our working bench(T) 10
Motor power(kw) 22
Bearing capacity of working bench(T) 4
Weight of machine tool(T) 32

NCB-1000 Hydraulic Sheet Metal Drawing Press

Model NCB-1000 single-action deep drawing press
Total pressure(KN) 10000
Return force(KN) 3000
Hydraulic cushion pressure(KN) 3150
Blanking and buffering power(KN) 5000
Ajustable distance of buffering opening(mm) 300
Stroke of sliding block(mm) 1500
Largest stroke of hydraulic cushion(mm) 450
Largest working pressure of liquid(Mpa) 25
Opening space(mm) 2300
Velocity of
Sliding block
Idle descent(mm/s) 200
Operation(mm/s) 5~15
Return(mm/s) 200
Velocity of
Hydraulic cushion
Ascend(mm/s) 100
Return(mm/s) Random
Size of working
bench
Left to right(mm) 4000
Front to aft(mm) 2800
Effective size of
hydraulic cushion
Left to right(mm) 2800
Front to aft(mm) 1800
Size of knockout hole(mm) Ф40
External size Height above ground(mm) 7100
Height below ground(mm) 2500
Floor
area
Left to right(mm) 7100
Front to aft(mm) 6900
Precision of repeated positioning(mm) <0.08
Stroke of lower working bench(mm) 3300
Bearing capacity of moving-our working bench(T) 60
Motor power(kw) 170
Bearing capacity of working bench(T) 25
Weight of machine tool(T) 210
