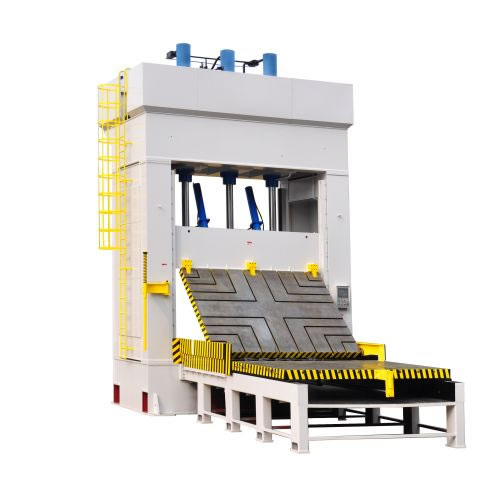

NC500-3525 Vertical Die Spotting Press

Description:

NC500-3525 vertical die spotting press is mainly applied in adjusting and maintenance of mold and die. With spotting force 500T, working bench 3500×2500, the die try-out press is especially suitable for middle and large die. Besides, NC500-3525 vertical die spotting press supports electric magnetic chuck and it can greatly save time and labor. Thus our machine takes advantage over traditional die try-out press.

Features:

1. High precision and small deformation
Upper and lower working benches and guide rails of pressure-plate vertical die spotting press are made from nodular cast iron, with advantages of sound flatness, high precision and small deformation.
2. The machine is equipped with servo controlled micro-inching system.
3. It has 180 degree slide tilt system.
4. NC500-3525 vertical die spotting press supports safety facilities ensure operator’s security.
Anti-falling facilitiesLocking facilities Safety supporting facilitiesRating protection

Components:

Front viewSide view

Parameter:

Model	NC500-3525vertical die spotting press
Max spotting force(T)	500
Max lifting force(T)	1220
Die opening space(mm)	2700
Size of working bench(mm)	3500×2500
Bearing capacity of upper working bench(T)	25
Bearing capacity of lower working bench(T)	50
Fast up/down speed(mm/s)	80/100
Slow up/down speed(mm/s)	25
Eject capacity(T)	15
Eject stroke(mm)	200
Out stroke of lower working bench(mm)	5250
Motor power(KW)	45
Total height of machine(H)(mm)	8700
Land area of machine(mm)	8700×7300
Weight of machine(T)	110
