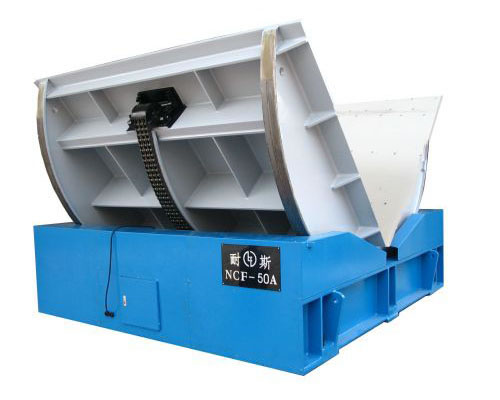

NCF-50 Mold Turnover Machine

NCF-50 Mold Turnover Machine


Mold reversing machine is mainly used to reverse or turn over heavy objects, from horizontal to vertical, or from vertical to horizontal. It is widely used in die manufacturing, injection molding and die casting. The machine is the inevitable supplementary facility for the vertical die spotting machine. NCF-50 mold reversing machine with rolling capacity 50T is suitable for adjusting large mould. Our company is a professional supplier of mold turnover machine in China, our products have gained certification of CE.


1. NCF-50 mold reversing machine adopts special double chain drive, oblique gear and worm speed reducer.
2. Four-roller device is wrapped with polyamide adhesive.
3. It supports remote operation with a separated control panel.
4. NCF-50 mold reversing machine adopts magnetic motor and automatic locking in case of power off during rolling;
5. The machine is fast, stable and safe as it supports inverter control.
6. It adopts adjustable mechanical pressure device.
7. Multiple position limit system can ensure safety of operation.
8. NCF-50 mold reversing machine adopts original import parts as electric components and are reliable.


Model NCF-30 mold reversing machine
Rolling capacity 50T
Time for rolling by 90 50s
Size of bench surface 2200x2000mm
Height of bench surface 1000mm
External size 2200x2900x3000mm
Central size 850mm
Motor power 7.5kw
Weight of machine tool 9.8T
