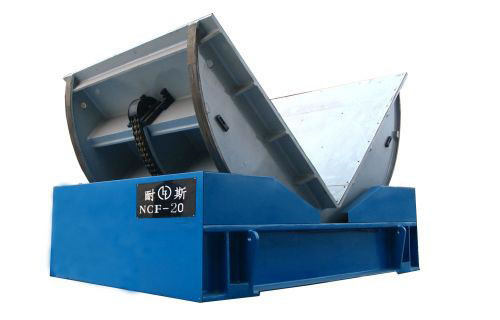

NCF-20 Mold Turnover Machine

Description:

Mould turnover machine is widely used in mold producing industry, injection industry and die-casting industry.
With rolling capacity 20T, NCF-20 mould turnover machine is a desirable for adjusting of large mold.

Application:

The machine is designed for dislocation and turning-over of the heavy objects such as metal coils.

Features:

1. NCF-20 mould turnover machine adopts special double chain drive, oblique gear and worm speed reducer.
2. Four-roller device is wrapped with polyamide adhesive.
3. NCF-20 mould turnover machine is fast, stable and safe as it supports inverter control.
4. It adopts adjustable mechanical pressure device.

Parameter:

Model	NCF-20 mould turnover machine
Rolling capacity	20T
Time for rolling by 90	35s
Size of bench surface	1800x1500mm
Height of bench surface	760mm
External size	1800x2300x2260mm
Central size	600mm
Motor power	5.5kw
Weight of machine tool	4.8T
